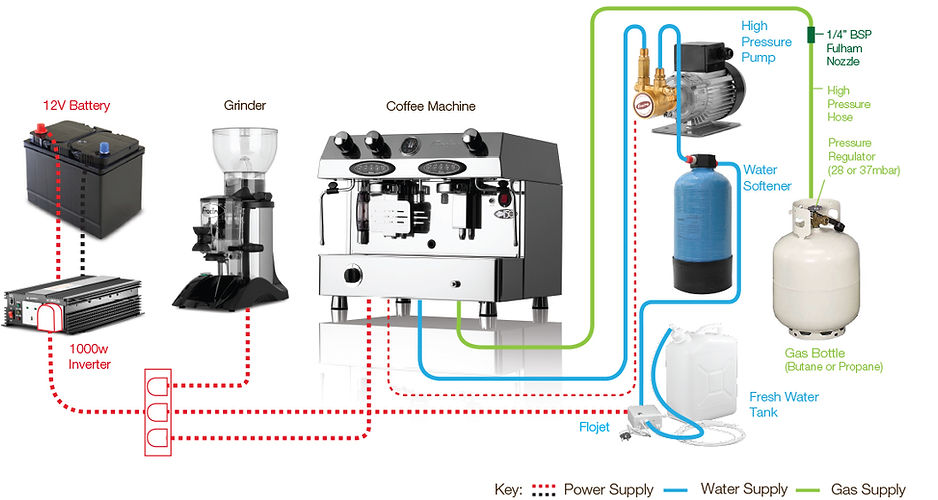

Installation Requirements

​

* Note: The installed gas supply system must comply with the Gas Safety Regulations and be certfied by a COMCAT registered engineer.



1. The Rotary Pump is supplied as standard with the Coffee Machine.



2. All items shown can be purchased from Fracino. The following which need to be purchased locally:





• High Pressure Hose attached after 1/4" Fulham nozzle.

• Pressure Regulator and Gas Bottle.

• Fresh Water Tank.



3. The Flojet Pump and Fresh Water Tank can be replaced by a fixed tank in the vehicle. This tank would require an external 1.5 bar pump.



4. The 12v battery can either be the vehicle battery or a slave battery. We recommend an AGM type gel leisure battery rated at 120Ah.
